A flickering oil pressure warning light can send any driver into panic—it could signal a faulty switch, a dying sensor, or genuine engine danger. This guide cuts through the confusion, teaching you how to distinguish between these issues, locate the oil pressure switch, test it, and replace it yourself, even without specialized tools.



Oil Pressure Switch vs Sensor: What’s the Difference?

Function Comparison：


Features	Oil Pressure Switch	Oil Pressure Sensor
Operation principle	Functions as a binary trigger—activates when pressure falls below a set threshold (typically 5-7 PSI).	Continuously measures pressure via strain gauge or piezoelectric element.
Signal Type	Binary (On/Off)	Analog/Digital Data Stream
Output	Triggers Warning Light	Feeds Real-time Data to ECU
ECU Response	Basic Warning Activation	Engine Protection Strategies
Data Access	None	OBD2 Scanners

Key Technical Distinctions:

Oil Pressure Switch	Oil Pressure Sensor
- hreshold-Based: Pre-calibrated to specific pressure (e.g., VW/Audi: 0.9-1.8 bar). - No ECU Adaptation: Only triggers dashboard light, no engine performance adjustments.	Dynamic Feedback, Enables ECU to: - Reduce RPM during low oil pressure (e.g., GM Active Fuel Management). - Disable cylinder deactivation systems (e.g., Honda VCM). - Log pressure data for diagnostics (OBD2 freeze frame).

What Does an Oil Pressure Switch Do?


The main function of the oil pressure switch is to monitor the engine oil pressure. When the pressure drops below the safe value, it sends a signal to the ECU, triggering the warning light or the protection mode. It acts as the "first responder" of the engine. Essentially, it is a pressure-controlled circuit breaker, which is of vital importance to the timeliness of the engine protection system.



The oil pressure switch monitors the engine oil pressure through its diaphragm and spring structure. When the engine oil pressure is too low, the spring pushes the diaphragm, causing the contacts to close, and at this time, the oil pressure warning light turns on. When the engine oil pressure reaches or exceeds the set value, the diaphragm overcomes the thrust of the spring, and the contacts open, making the warning light go off.



In addition, the variable resistor inside the oil pressure sensor, under the action of the diaphragm pushed by the engine oil pressure, will change the output current of the circuit. As a result, the pointer of the oil pressure gauge can indicate the corresponding magnitude of the oil pressure.

Where Is the Oil Pressure Switch Typically Located?


For most vehicles, whether it is the traditional oil pressure switch or the modern electronic sensor, the core design logic is to have direct contact with the engine's main oil passage to ensure the real-time nature of the monitored data. Take the common Honda Civic as an example. The switch is usually integrated on the side wall of the cylinder block near the oil filter housing. This location not only facilitates quick maintenance during an oil change but also enables accurate capture of the oil pressure status after the oil has passed through the filter.

For older models (before 2000, such as the 1998 Ford F-150), the oil pressure switch is mostly located above the oil pan and triggers the instrument warning light through a single wire grounding. Modern electronic sensors (such as the 2022 Jeep Wrangler) have switched to a three-wire sensor, and the location is no longer limited to the vicinity of the filter. In some brands (such as Dodge/Jeep models), the three-wire sensor is often integrated into the oil cooler bracket.



Common Symptoms of a Faulty Oil Pressure Switch

Common symptoms of an oil pressure switch failure include abnormal behavior of the oil pressure warning light, OBD2 trouble codes, oil leakage, and abnormal oil pressure readings, etc. The specific manifestations are as follows:



Abnormal Oil Pressure Warning Light
The oil pressure warning light stays constantly on or flashes. It can trigger an alarm even when the actual oil pressure is normal. The engine malfunction indicator light may also come on simultaneously, indicating a related problem in the system.



OBD Trouble Code Prompt
The system may trigger trouble codes such as P0522 (low pressure signal failure) or P0523 (abnormal voltage). A diagnostic tool is required to read and confirm the specific problem.



Oil Leakage Phenomenon
Oil leakage is commonly found at the threaded interface of the sensor. If the sensor body is leaking, it needs to be directly replaced. If the leakage occurs at the sealing surface, it can be resealed. If oil seepage is caused by improper installation, it needs to be retightened to solve the problem.



Abnormal Instrument Reading
It shows an abnormal value (such as 0.99 bar) at idle speed, or the instrument reading directly returns to zero. When the pressure reading obviously does not match the actual situation, the failure of the sensor/switch should be prioritized for investigation.

How to Test an Oil Pressure Switch

First, check if the oil level is sufficient and the oil is not deteriorated. A low oil level or poor - quality oil can directly trigger the warning light, and many false alarms are due to oil - related issues.



Next, use an oil pressure gauge to check the pressure. If the pressure is low, there may be problems with the oil pump or the oil passage. If the pressure is normal but the warning light is still on, the sensor may be faulty.

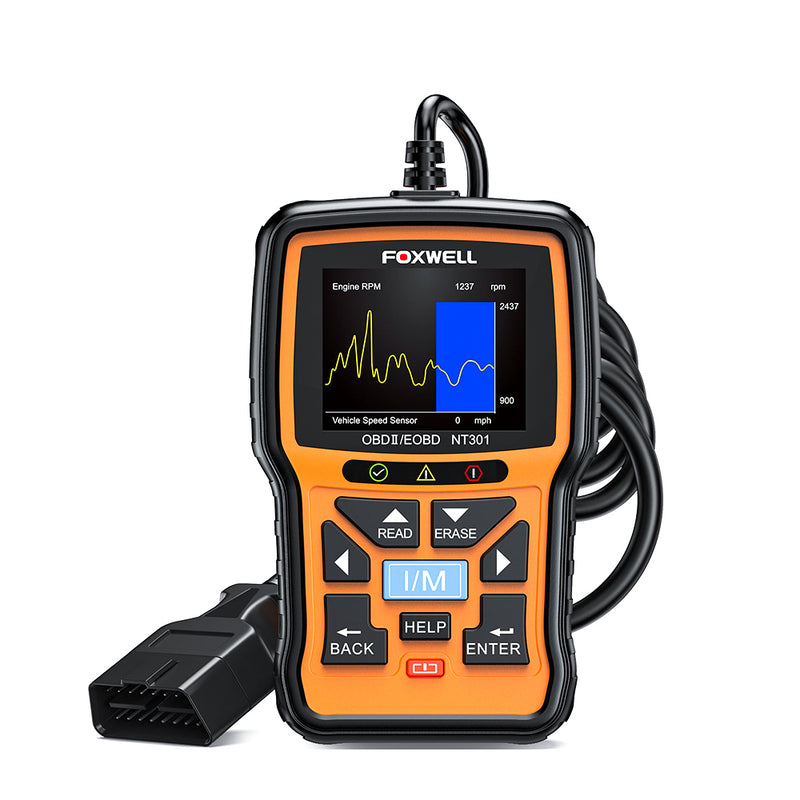

You can also use an OBD scanner to connect to the vehicle's diagnostic port (OBD - II). Read the real - time data stream and observe whether the output voltage of the oil pressure sensor is within the normal range. If the sensor's output voltage is abnormal, the sensor itself may be faulty and needs to be replaced.



For OBD2 scanner diagnosis, conduct real - time data stream analysis by comparing the oil pressure value read by the ECU with the value measured by a mechanical gauge. This helps in accurately determining if the oil pressure switch and related components are functioning properly.



How to remove & replace an Oil Pressure Switch

Tools: Oil pressure sensor socket, carburetor cleaner, thread sealant

Step 1: Locate the position of the sensor. In most vehicle models, it is beside the oil filter or on the side of the cylinder block.
Step 2: Unscrew the cap of the oil filler port and drain the engine oil.
Step 3: Locate the electrical connector of the oil pressure switch and carefully disconnect it. Use a special socket for the sensor (such as an oil pressure sensor socket) to remove the oil pressure switch.
Step 4: Clean the installation surface of the sensor with carburetor cleaner and apply thread sealant.
Step 5: Screw the new oil pressure switch back into place. Avoid over-tightening to prevent damage to the threads. (The general cost of replacing a common oil pressure sensor is usually between $100 and $300.)
Step 6: Reconnect the electrical connector, start the engine, and check for any leaks or abnormal noises to confirm that the installation is correct.


Note: After installation, use a diagnostic tool to clear the engine trouble codes. Under normal circumstances, the PCM (Powertrain Control Module) will turn off the malfunction indicator light. If the warning light does not go out, it may be that the trouble codes have not been completely cleared, or there are other potential problems that have not been resolved. It is recommended to go to a professional repair shop for further inspection.
