Foxwell BT780 Battery Analyzer Supports Start-Stop System Test With Built-in Thermal Printer - Foxwell Diag

Foxwell BT780

Name: Foxwell BT780 Battery Analyzer Supports Start-Stop System Test With Built-in Thermal Printer
Brand: Foxwelldiag
SKU: BC00019_4
Price: 7982.0 TWD
Availability: InStock
Rating: 4.8 (5 reviews)

Automotive Battery Load Tester 6V 12V 24V with Printer

$7,982.00

$9,986.00

Save 20%

Quantity:

One Year Warranty

Lifetime Free Update

1-5 Days Shipping

Lifetime Tech Support

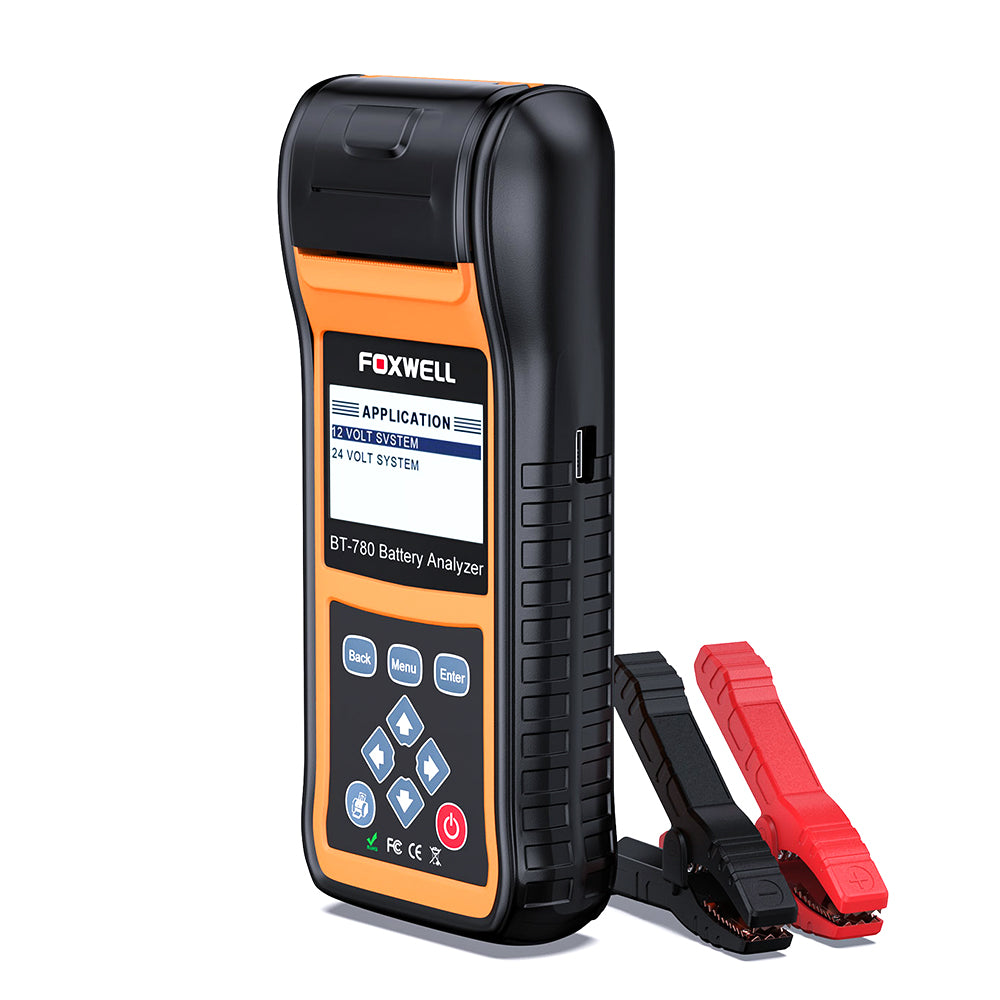

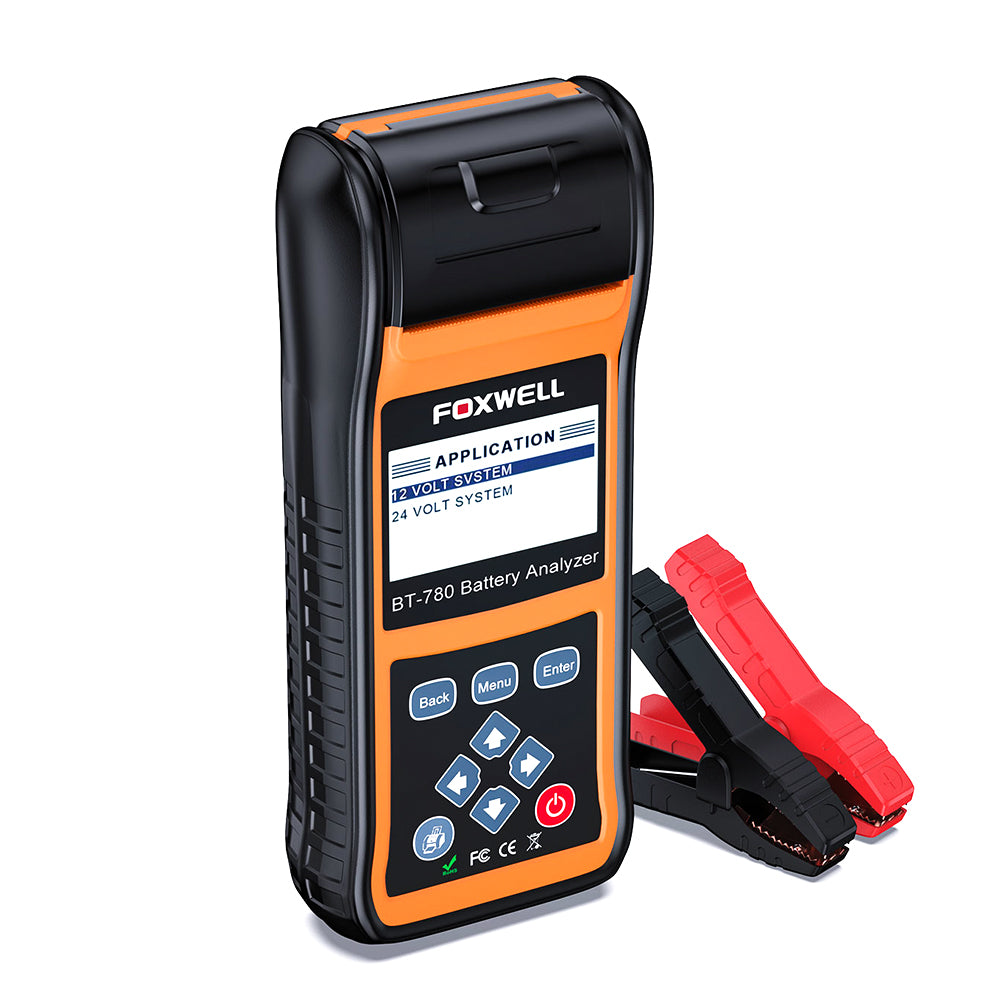

Foxwell BT780 Battery Analyzer Supports Start-Stop System Test With Built-in Thermal Printer

$7,982.00

$9,986.00

Tests multiple battery types

Applicable for 12V battery system and 12V& 24V starting and charging system

Tests multiple battery types: Regular Flooded, AGM Flat Plate, AGM Spiral and GEL, Start-Stop AGM and EFP Batteries.

Multiple functions

Built-in Printer & Built-in Battery

Multiple functions Built-in Printer & Built-in Battery

BT780 is the most powerful diagnostic scan tool for battery on the market, capable of testing 6V/ 12V/ 24V lead-acid batteries. Built-in printer, test results are printed immediately. Otherwise, it doesn't emit light, doesn't heat, doesn't produce sparks, doesn't discharge the battery, to ensure the safety of all levels of use.

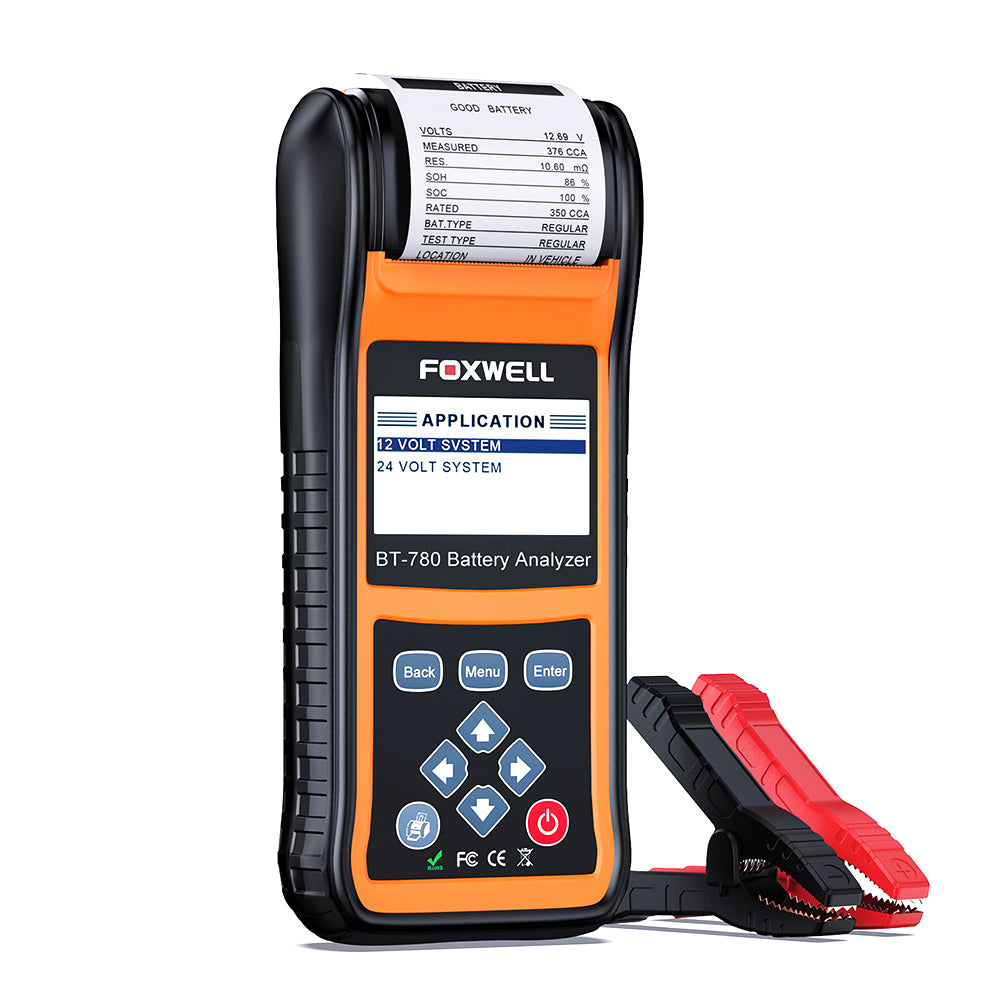

Built-in thermal printer

Equipped with a built-in thermal printer, gain the test report by one-stop in a few seconds accurately, and share it with others for further analysis. Doesn't connect the software and a PC connection to print, more convenient and faster for user. (The BT780 comes with 3 rolls of printer paper.)

Multiple Rating System

Covers most battery rating standards such as CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA...

What's the purpose of a 12V 24V battery Test?

Why is 12V 24V cranking testing essential?

What's the purpose of a 12V 24V battery Test?

Why perform a 12V 24V Charging Test?

Why is 12V 24V cranking testing essential?

What's the purpose of a 12V 24V battery Test?

Four states: Good Battery, Good-rechange, Change & Retest, Replace Battery.

Simply connect the tester to check battery health condition: CCA value/rating, voltage, internal resistance, state of health (SOH), and state of charge (SOC).

Why perform a 12V 24V Charging Test?

Five test results: No problem, No output, Low output, High output, Excessive ripple.

It is vital during vehicle use, ensuring a dependable charging system, preventing unexpected power failures, and bolstering the overall reliability of the vehicle in real-life driving scenarios.

Why is 12V 24V cranking testing essential?

Cranking normal, Low voltage, Charge battery, Replace battery, No start, Cranking skipped

Ensures reliable engine starting, detects potential issues early, prevents breakdowns, optimizes vehicle performance, and save time and costs associated with potential battery problems.

Instrument Details

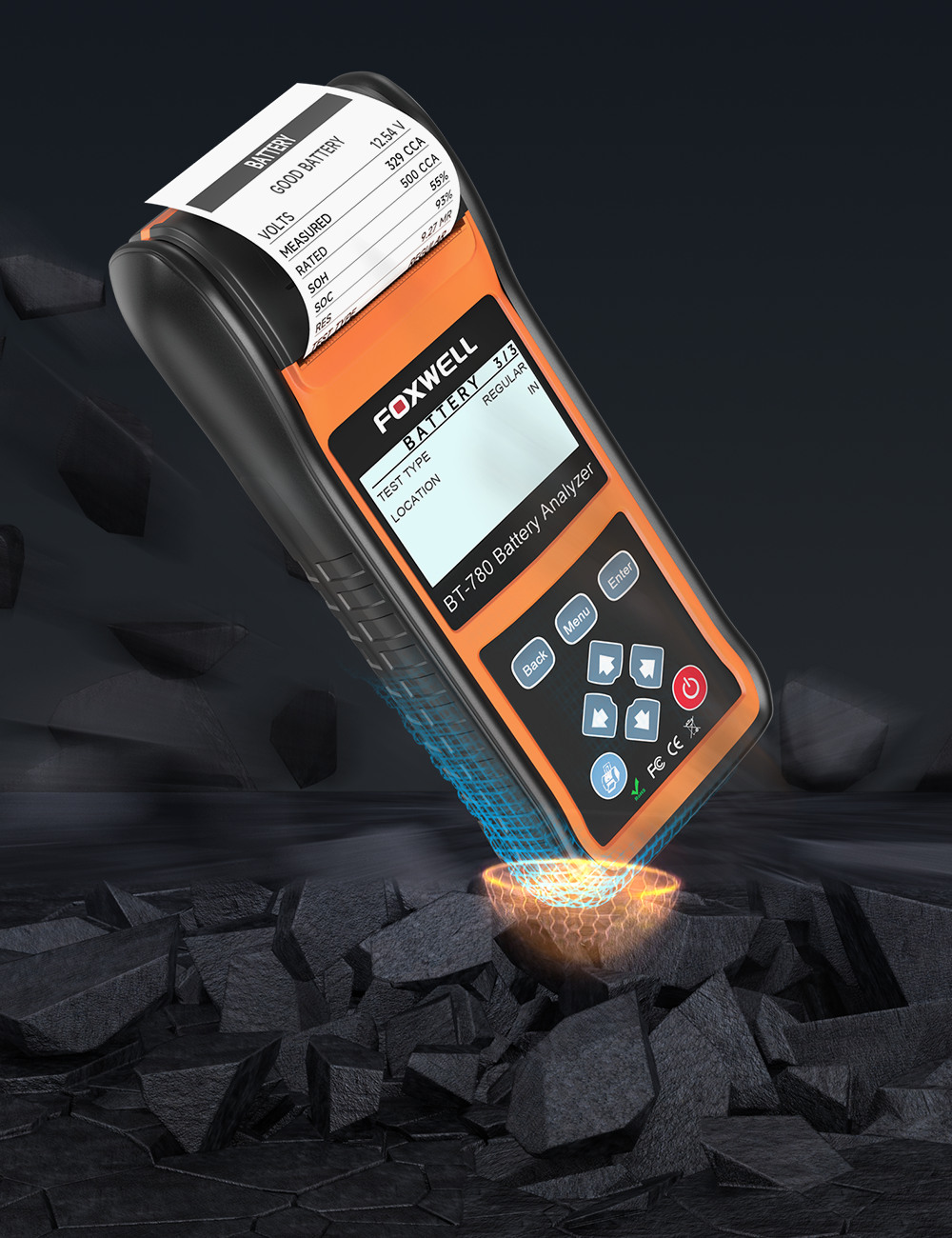

Anti-collision

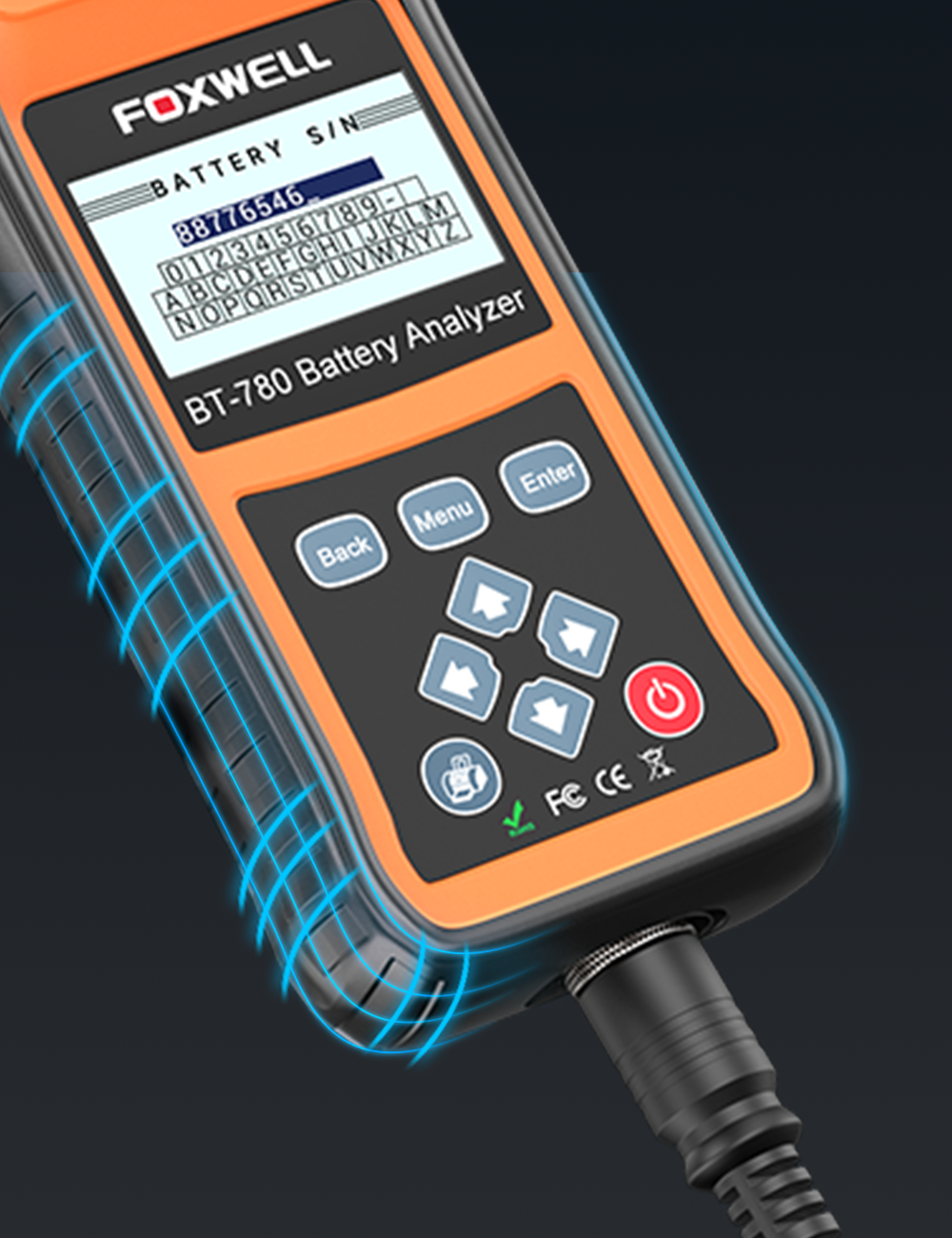

Anti-slip

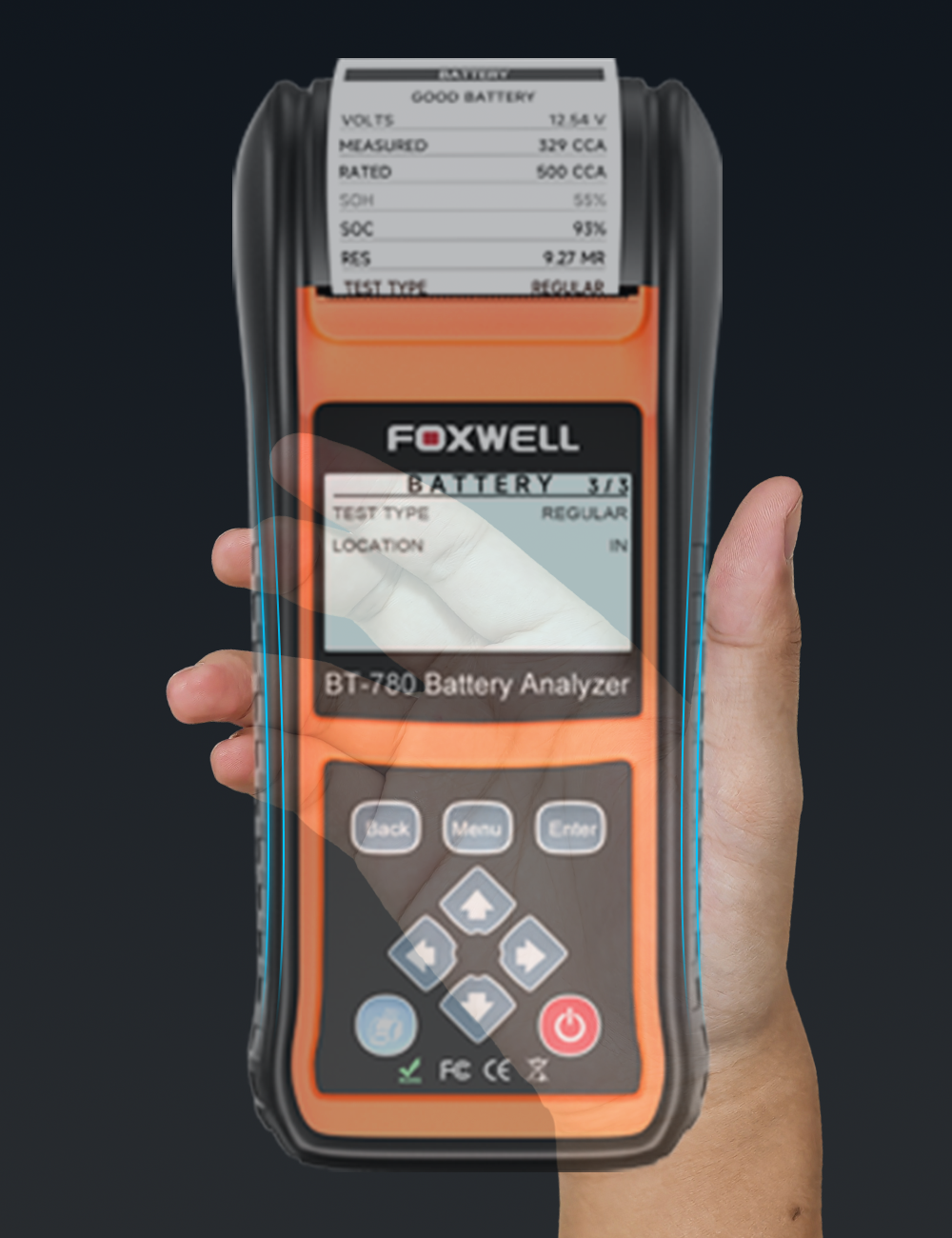

Ergonomic touch

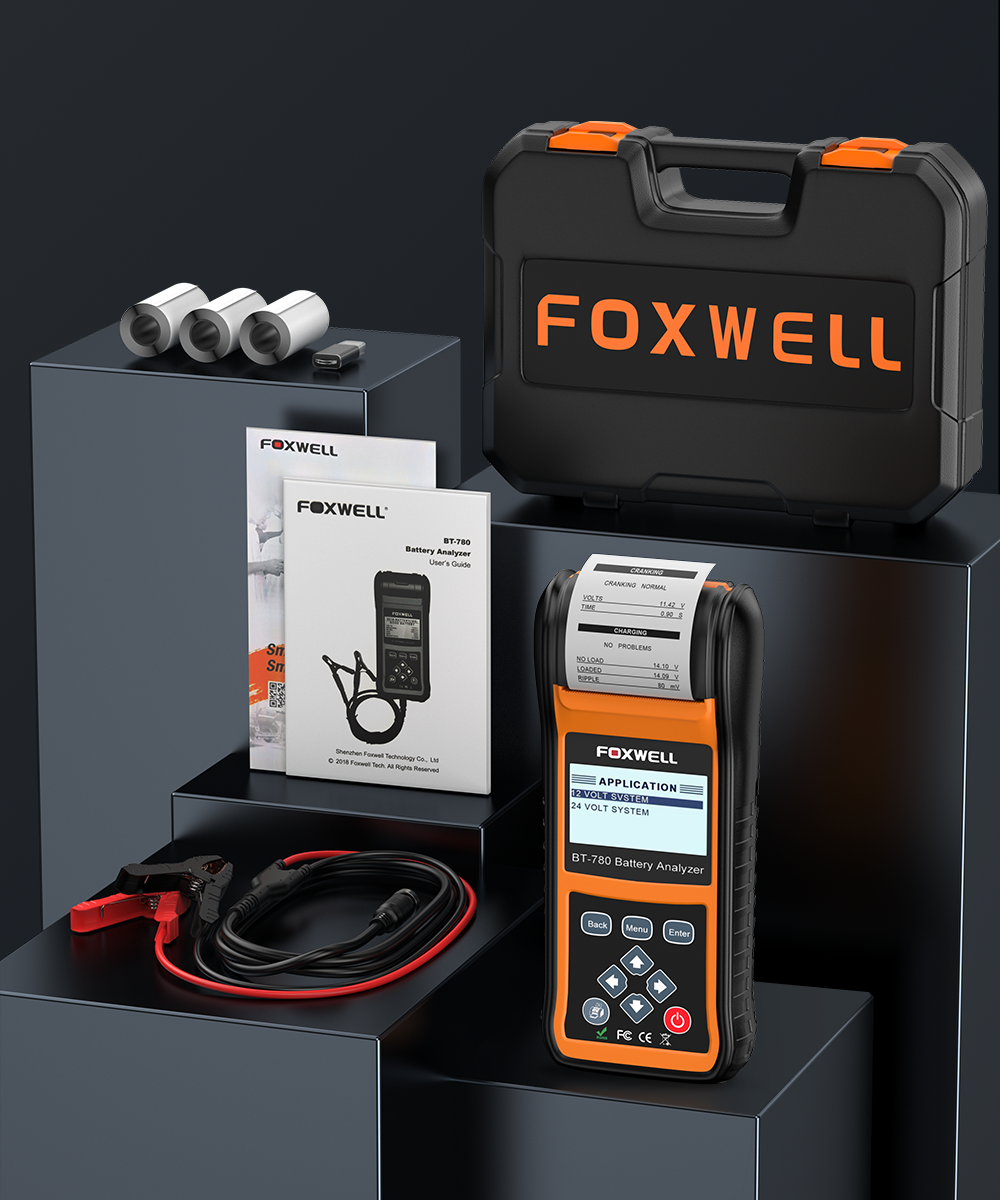

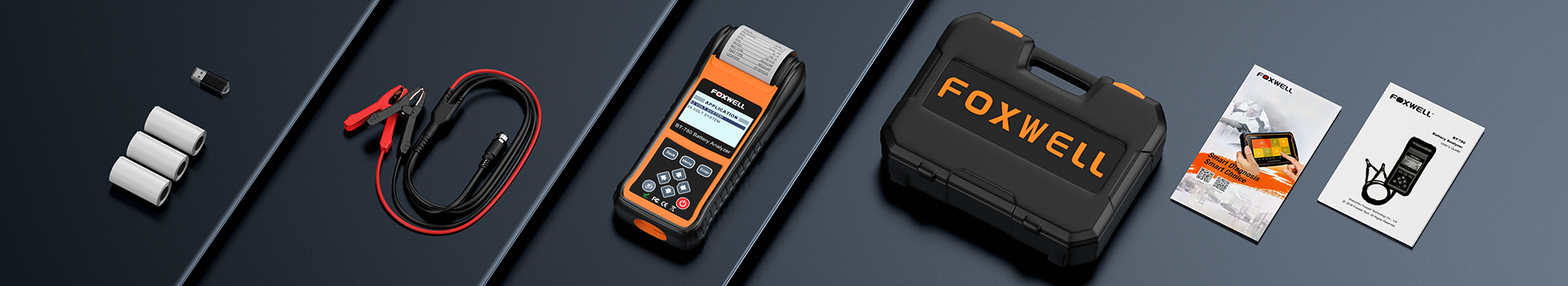

Package List

Get the FOXWELL BT780 Manual
and Update Tool

View Manual Update Tool

Very good tester

This is a great battery tester for a shop or at home. It is very easy to setup and use. The print out is very clear and nicely laid out. Feels like a very well built tester.

Works Great!!!

Works every time!!! Great tool to have when testing vehicle.

value stuff

Received this product with nice package. It is so useful for my mechanic friend. I got this for a birthday gift. He loves this so much. Each penny I used got its value.

I have used my BT780 tester for a few weeks now
Have tested 2 car batteries a few times, 1 lawn tractor, 1 small 12v battery for a booster
Unit works fine, one more foot (or so) of cable lenght would be nice
The printer function is very useful to have, darker section titles are a bit fade
Will be inquiring for extra rolls eventually

Their is one more test I perform with my ''Klein Tool multimeter'' that I find very useful to
mesure voltage, that gives me a residuel result of battery, after car is idle for a day or two
1- I plug unit to battery, select Voltage function and «Min/Max option»
2- I start the car and let it run only a few seconds, then turn off engine
3- any minimum result of lower than «9.6 volts» indicates battery is to be replaced

Tried it. Like it.

The unit is packed in a very durable carry case. The instructions are printed in a SMALL booklet (very typical these days) and cover everything but are best re-read the first time you go to use the product in order to grasp all of the things it does. The built-in printer is a great feature, but it needs a light hand tension on the paper while printing, otherwise the paper binds up and you don't get the full report.
